R33 Body Alignment Manual

gadget1382
 Share

Recommended Posts

gadget1382 Enthusiast

gadget1382

Posted
Posted

As the topic says. I'm after the workshop body alignment part of the Manual for an R33. The section with the co-ordinates of hole's, bolts and suspension pins.

The Workshop Manual's I keep finding (regardless of their huge size) lack that section and only have the electrics and motor sections.

I need it to work out the correct geometry of the rear suspension.

Any assistance would be greatly appreciated. Thanks :)

Link to comment
Share on other sites
  • 4 months later...
gadget1382 Enthusiast

gadget1382

Posted
  • Author
Posted (edited)

After A - LOT of Effing around!!!

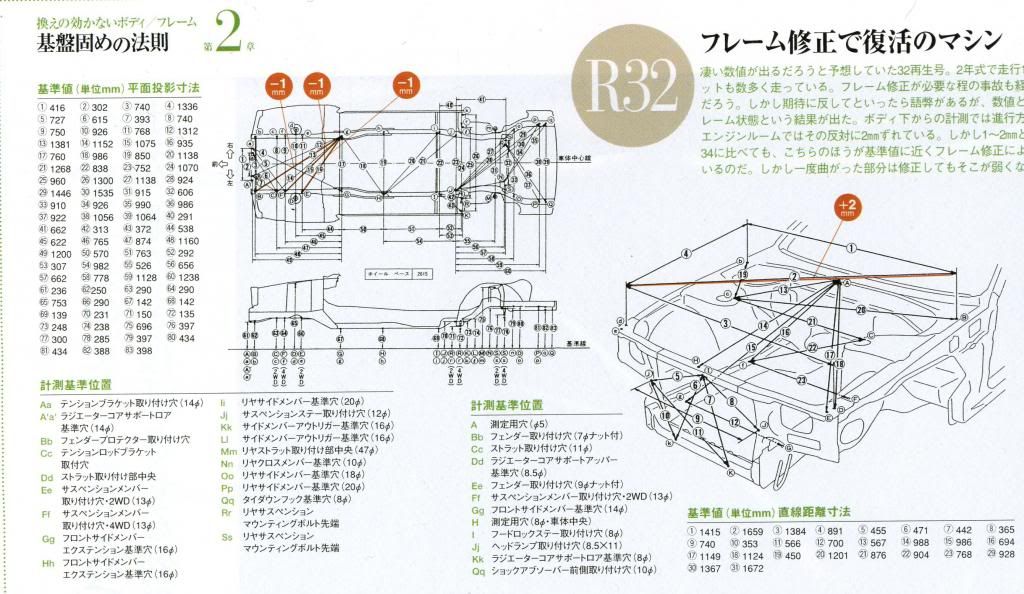

http://i75.photobucket.com/albums/i305/gadget1382/VQ30det/Nissan%20Skyline%20Chassis%20Dimensions/R32dim_zpsde26471b.jpg

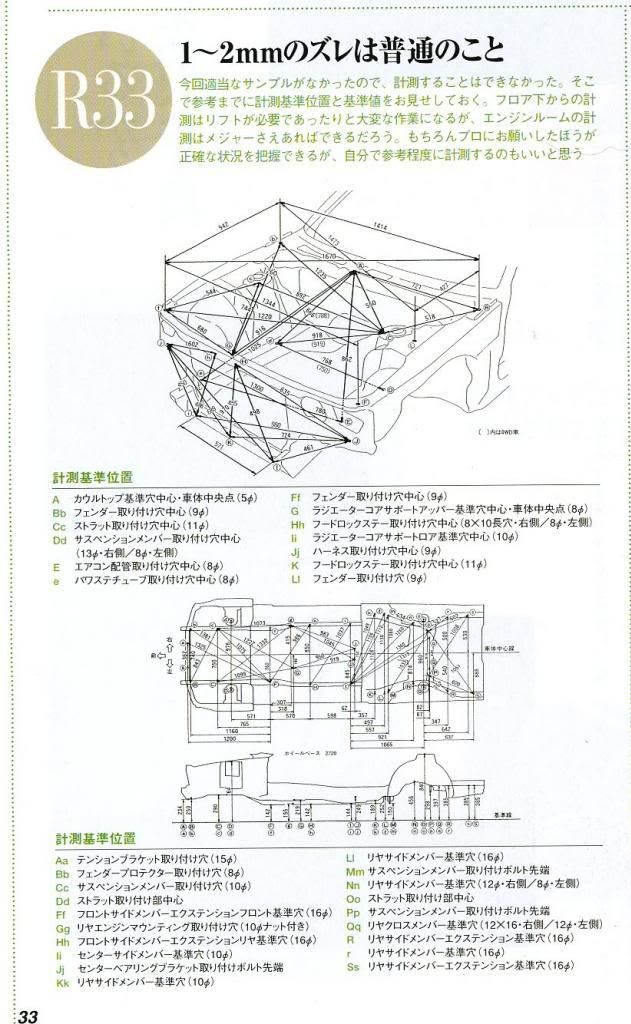

http://i75.photobucket.com/albums/i305/gadget1382/VQ30det/Nissan%20Skyline%20Chassis%20Dimensions/R33dim_zps07534267.jpg

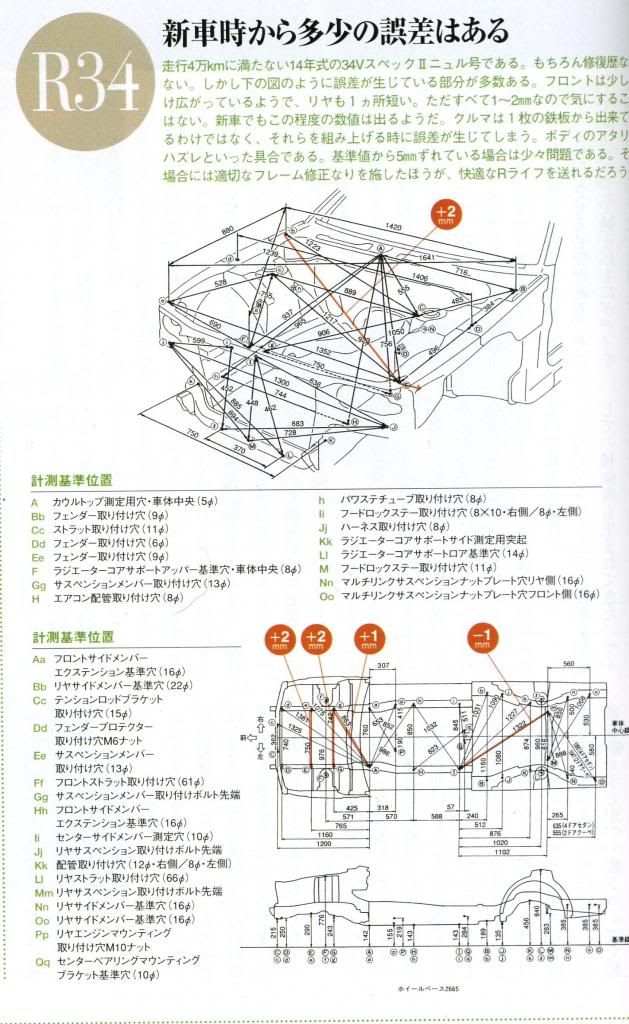

http://i75.photobucket.com/albums/i305/gadget1382/VQ30det/Nissan%20Skyline%20Chassis%20Dimensions/R34dim_zps63991bf9.jpg

Hope this helps people straighten out their cars!

Mod's you may want to pin / save these... as they were a B*tch to get!

Sorry haven't been able to find a non-pixelated R33 version, but you can still read 70% of the dimensions.
