For Sale

911gtcupcar · May 15, 2009

FOR SALE

Used 2 x Soundstream 12" subwoofers, Dual 12" box and soundstream mono block amp.

Only 1 year old. Well looked after. No Longer needed. As new condition. $700 ono. TOTAL RRP: $959.......Bargin.

Great performance and sound quality. Installed in 2000 Hyundai Grandeur XG and 2001 Holden Vectra JS2. Standard Box fits like custom made.

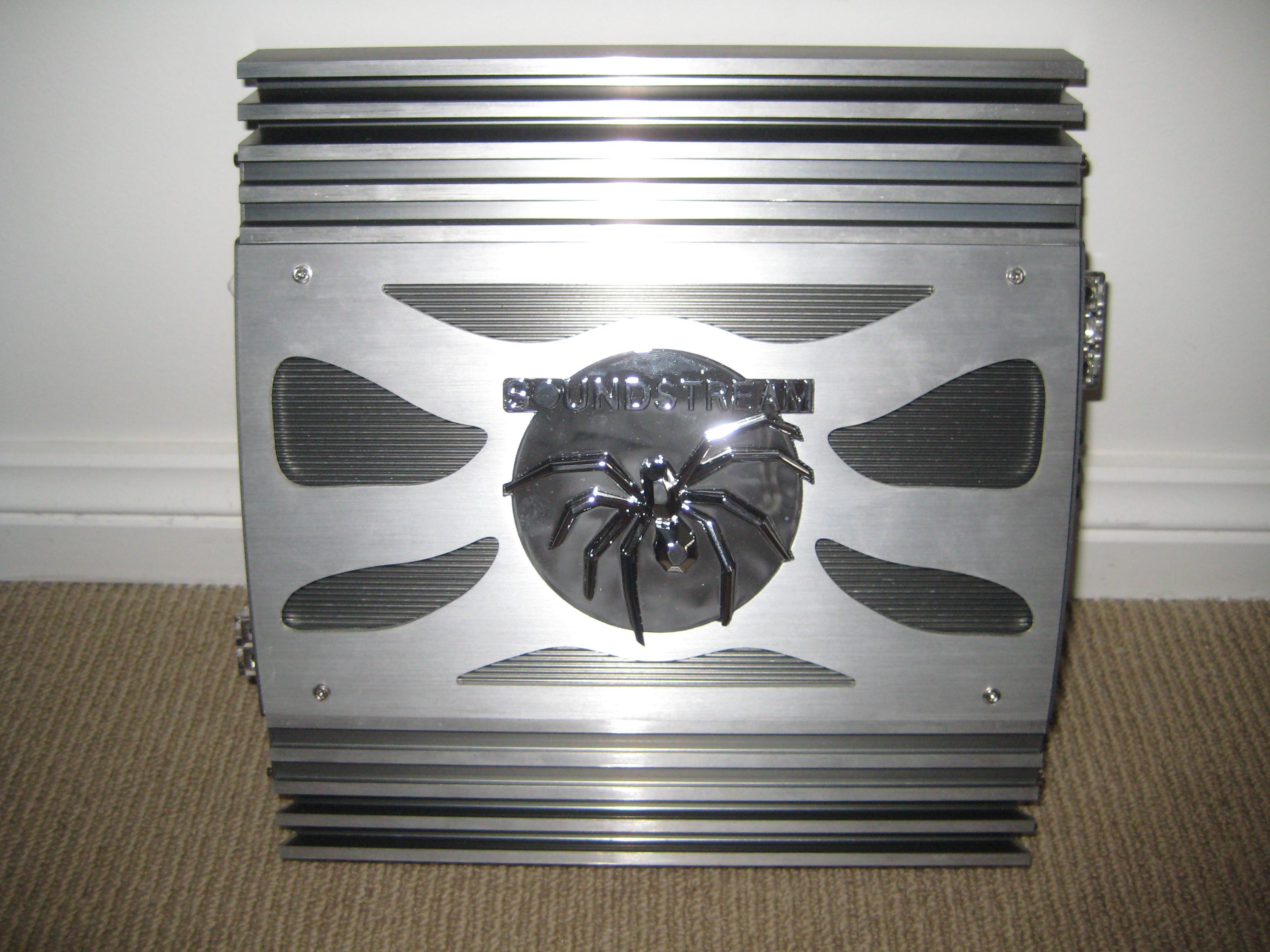

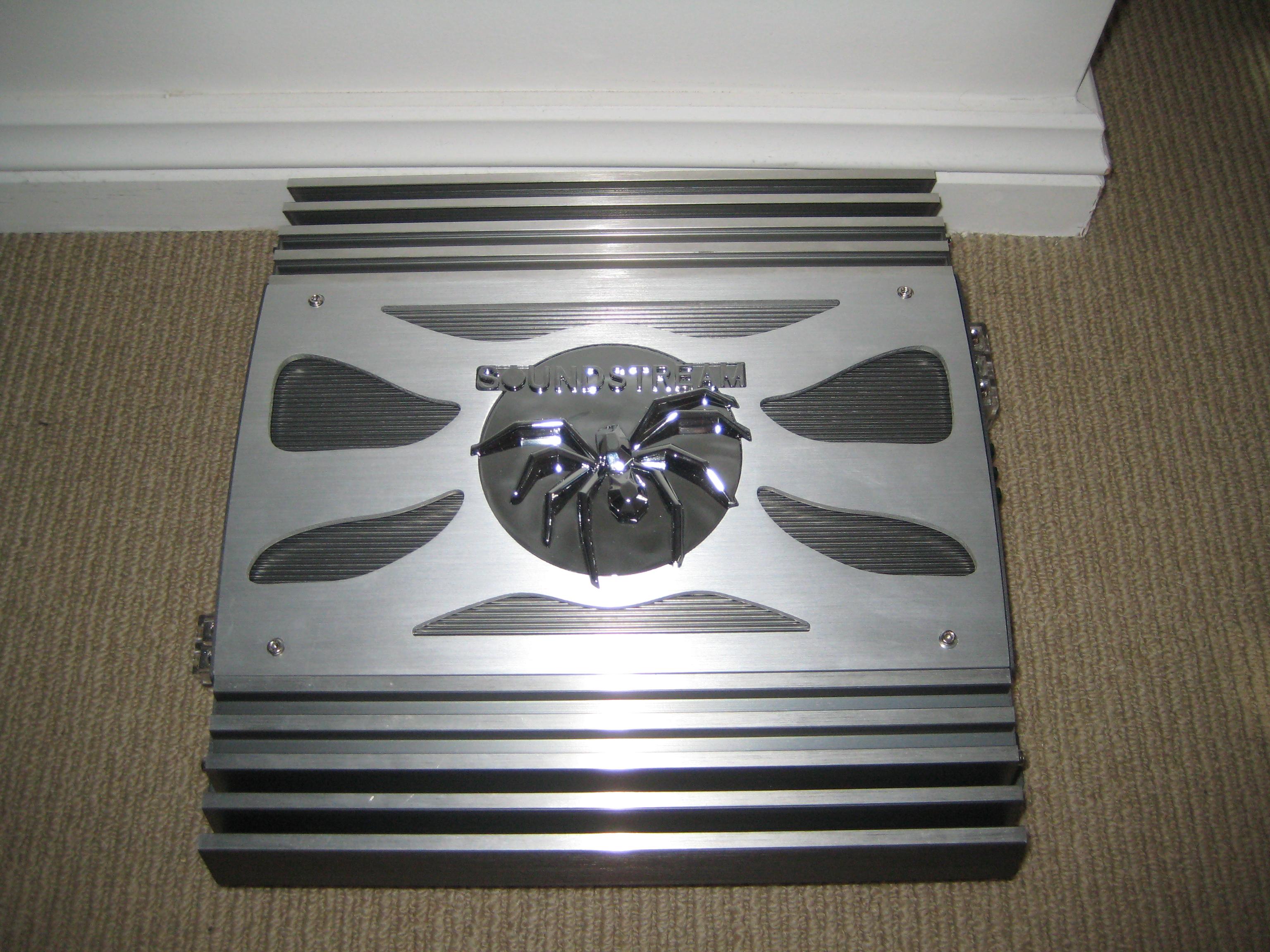

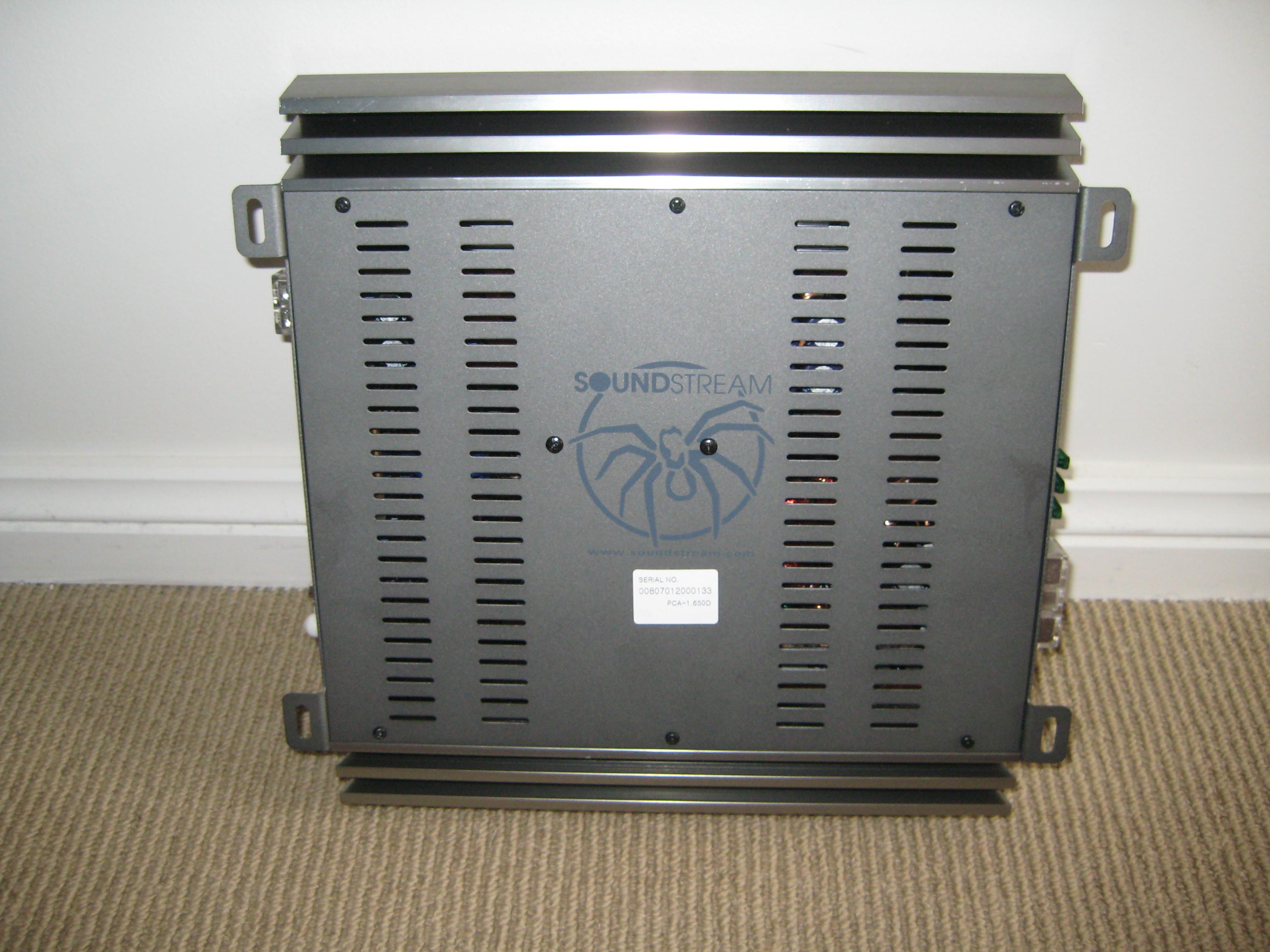

Soundstream PCAI.650D Digital Mono Block Amplifier - rrp: $599

Soundstream Picasso PCA1650D

650 Watt Mono Block Amplifier

Picasso amplifiers exude Performance and Quality with 2.5 to 1 power supply ratios and superior damping factors for excellent woofer control under high-stress applications. With both class "A/B" and class "D" amplifiers to fit any application, Picasso is the answer to loud and clear sound reproduction.

Class D Features

- TST (Twin Stack Technology) Allows 2 amplifiers to drive 1 voice coil, effectively doubling the power

- High quality FR-4 circuit board

- Class D circuitry

- Continuously variable low-pass crossover

- Continuously variable subsonic filter

- Variable subwoofer equalizer

- Platinum 2-gauge power connectors

- Accepts up to 16VDC power input

- ohm stability

- Includes Remote Bass Boost Control

Specifications

Output @ 4 ohm: 500 x 1

Output @ 2 ohm: 650 x 1

Bridged @ 1 ohm: N/A

THD: 0.5%

Freq. Resp. 5 - 250Hz

S/N Ratio >85dB

Damping Factor: >200

Input Sens. 0.2 - 6.0V

Crossover Slopes: 24dB

Crossover Freq. HP: N/A

Crossover Freq. LP: 55 - 220

Subwoofer EQ: 0 - 18dB

Subwoofer EQ Freq: 30 - 150Hz

Dimension 11 x 2.5 x 11

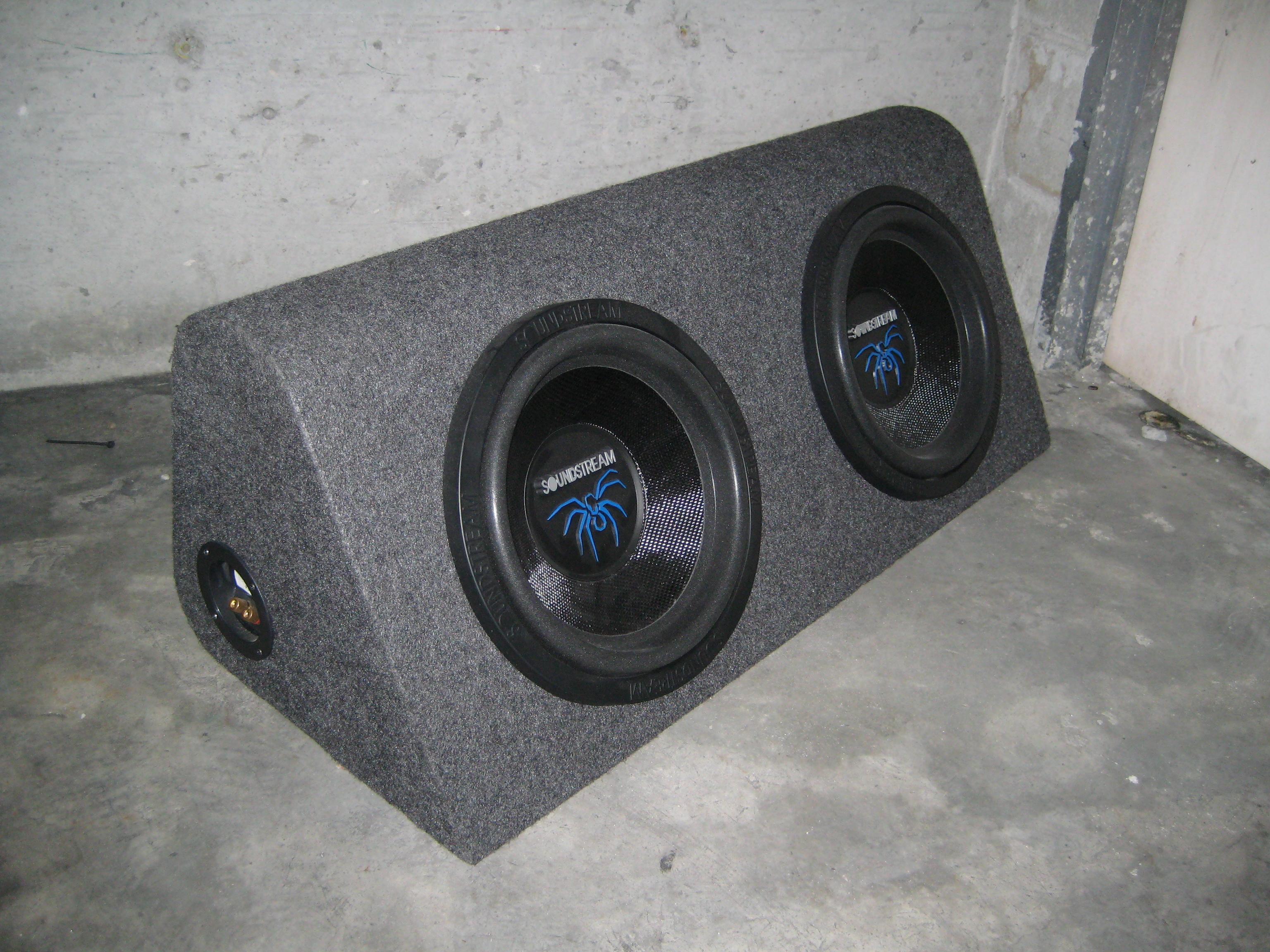

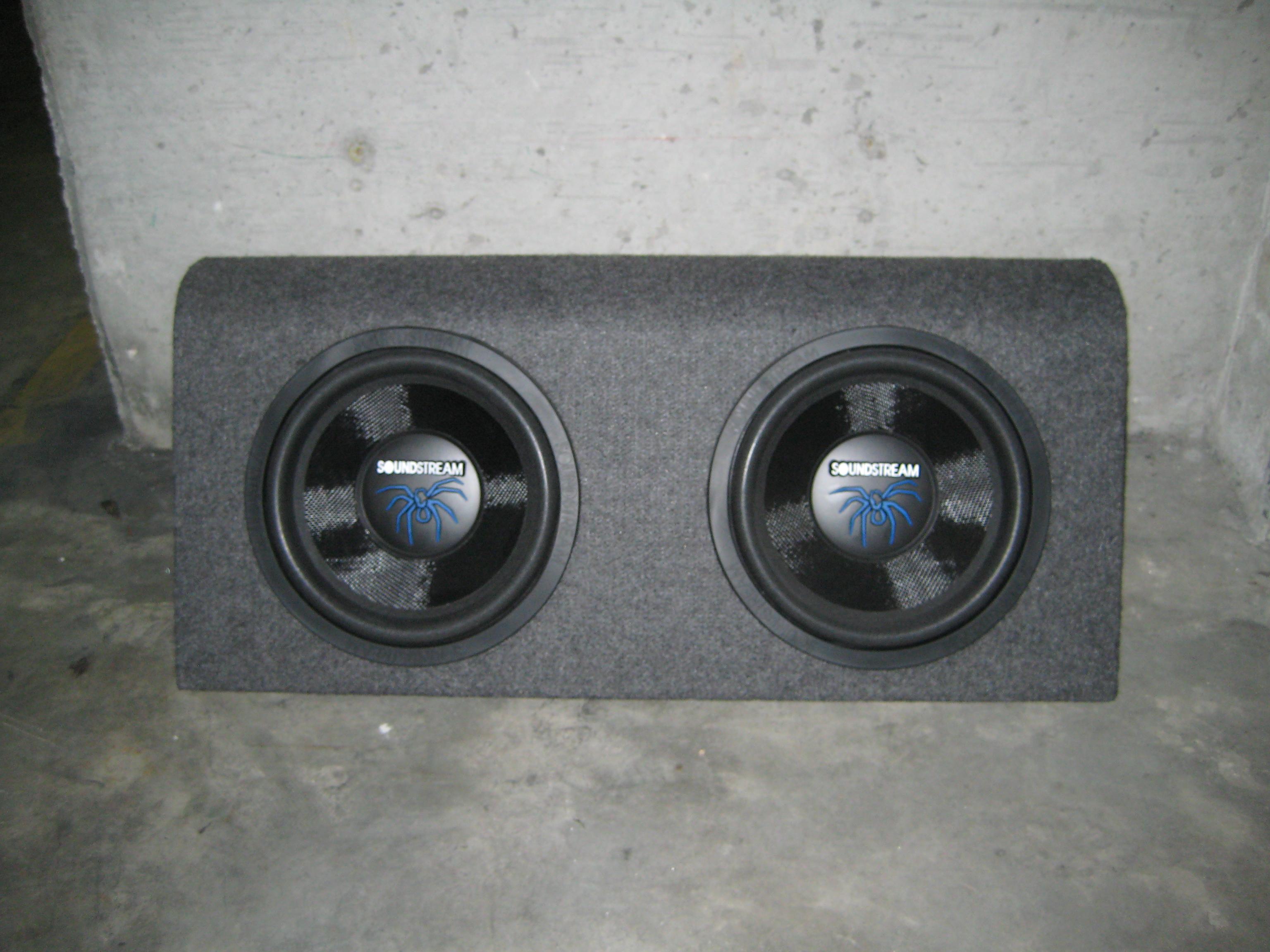

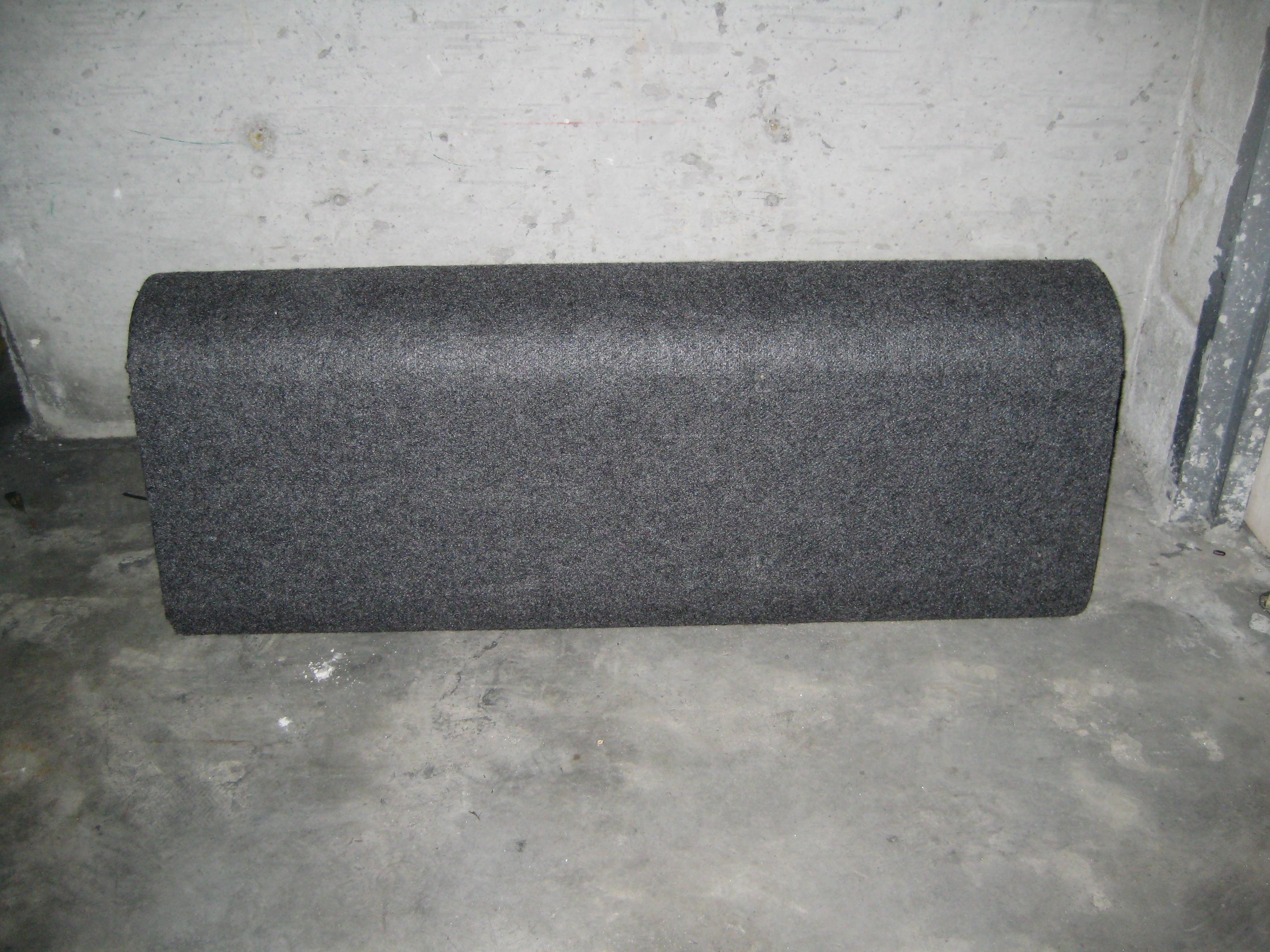

Dual 12" Subwoofer Enclosure - rrp: $120

Great Build. Great Quality.
Dual 12" Sealed Subwoofer Enclosure.
2 cubic foot sealed MDF subwoofer enclosure.
Angled for mounting behind rear seats.
Finished in grey carpet with carpeted ends.
Internal sound damping foam

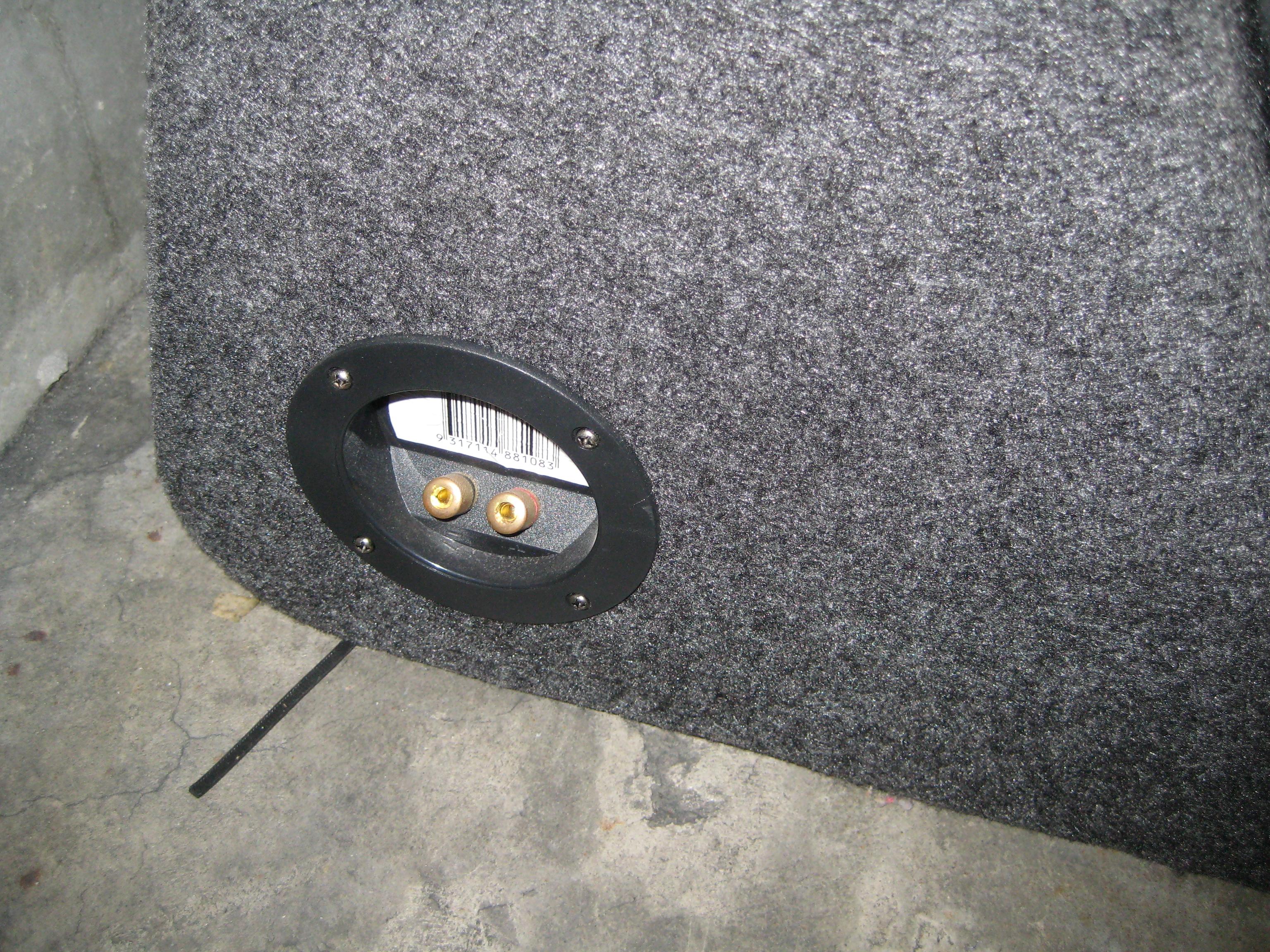

Gold plated terminals.

Dimensions:

Length: 92cm

Width: 38cm

Height: 34.5cm

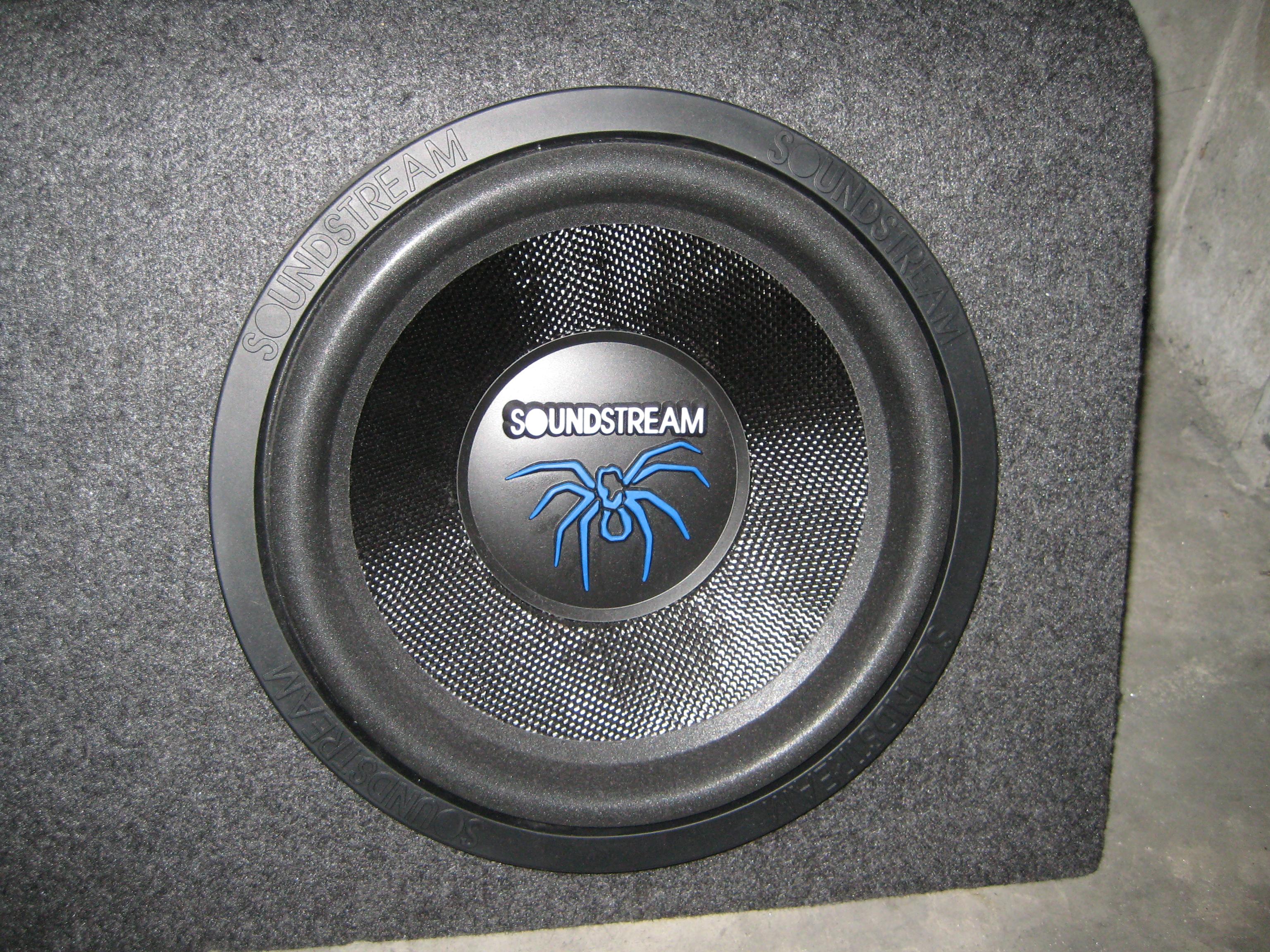

2 x Soundstream PCW-12 12" Subwoofers - rrp: $120

Technical Specification

Features

Voice coil Diameter: 2"
Dual voice coils
Magnet Weight. (oz): 50
Frequency response: 25-1.1kHz
SPL: 89dB
Woofer depth: 5.0"
Recommended enclosure: 1.25/3.0
Recommended enclosure type: sealed
Voice coil woven tinsel leads
Vented and extended pole piece
Low carbon top and bottom plate
Rubber magnet cover
Stainless steel stamped basket
UDV cooling technology
Low resonance woven carbon fibre cone
Black progressive roll conex spider
C-lock rubber gasket
Hi-arc high excursion surround

Edited May 15, 2009 by 911gtcupcar

911gtcupcar · May 18, 2009

FOR SALE

Note: Subwoofers and box have been sold.

Used Soundstream mono block amplifier.

Only 1 year old. Well looked after. No Longer needed. As new condition. $400ono. RRP: $599.......Bargin.

Original box, packaging and accessories, included.

Great performance and sound quality.
