Jun 2.7l Stroker Build Underway (hks T04z)

StageZilla

By StageZilla,
in Engines & Forced Induction

 Share

Recommended Posts

Paul T Rookie

Paul T

Posted
Posted

About the drysump,

You ideally need a 4 stage with rear drive to run your PS pump.

Two pickups on the left front of the sump, chanelled over to the RHS to allow for crank rotation.(better in the front as braking generates more G force than acceleration)

One pickup in the back of the head to remove oil from the cam area.

you can choose to run under vacuum, or use a tank return system as shown on my other pic, but the design of the internal tank needs to include a seperator and a condensor.

The other stage of the pump is for pick up from the remote tank, which in my case is mounted inside the car.

The engine block needs to be modified as well, you need to remove the internals of the standard oil pump, block off the pump outlet in the block. We have used two inlets into the main gallery so that each pressures half the oil gallery each. You also need to modify where the factory oil filter goes on.

The pump will onl fit if you make a new custom LHS engine mount, but you would need to check this as my engine sits further back than stock.


  • Replies 315
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Posted Images

CruiseLiner Mentor

CruiseLiner

Posted
Posted (edited)

>_< run in tune is now booked for the 16th march :yes:

more pics :)

check em out....

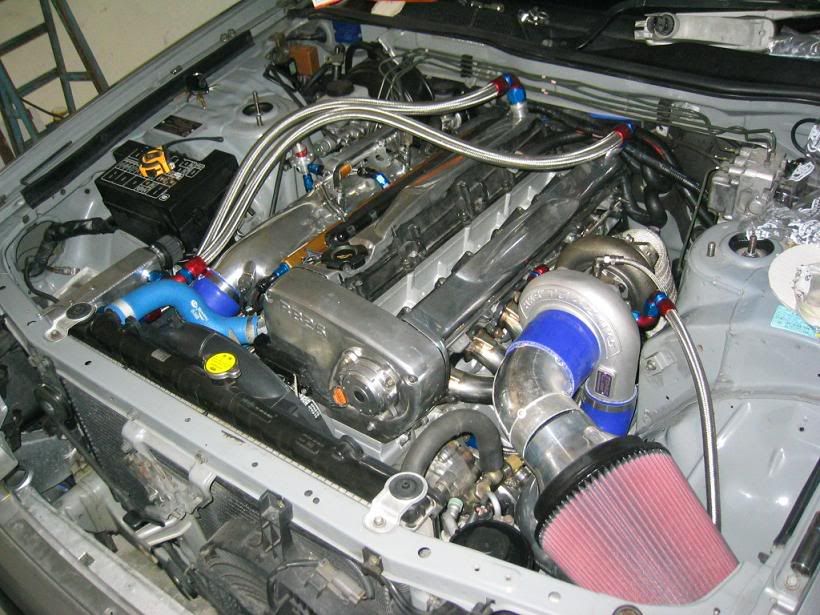

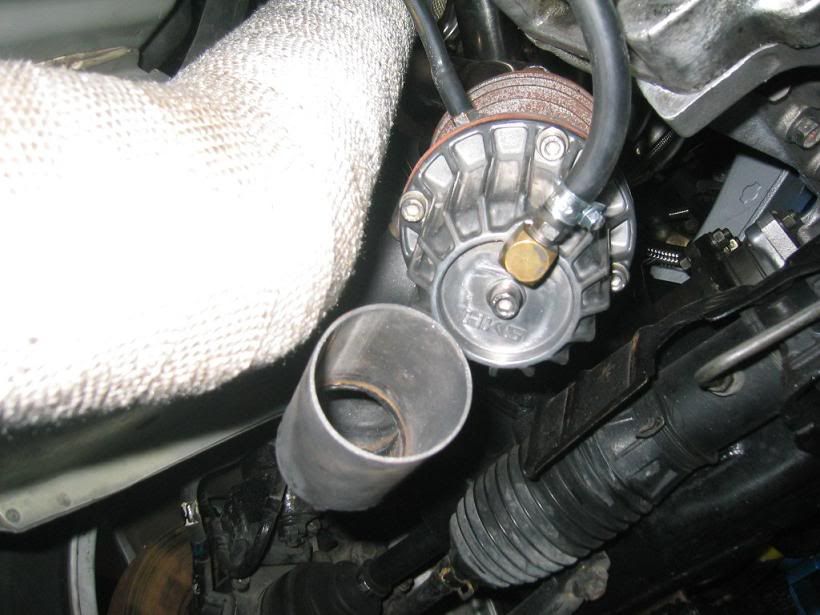

3" exhuast with heat wrap, plus the hks 50mm wastegate with 2" screamer pipe to annoy the neighbours :D

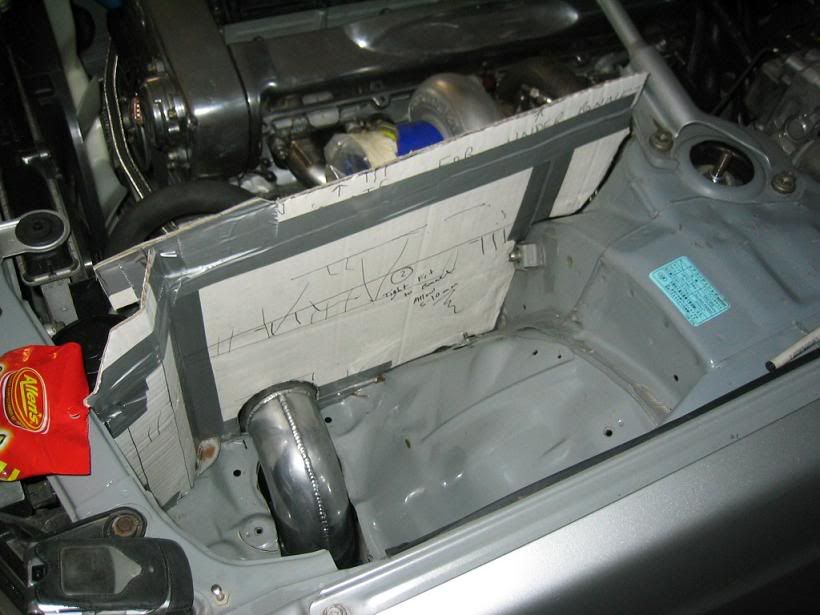

my heat shield to keep hot air from the turbo away from the inlet path, it is going to seal hard against the bonnet (with rubber edging) to prevent any hot air entering:) i have a 4" feed coming from the front bumper to supply the pod with cool air.

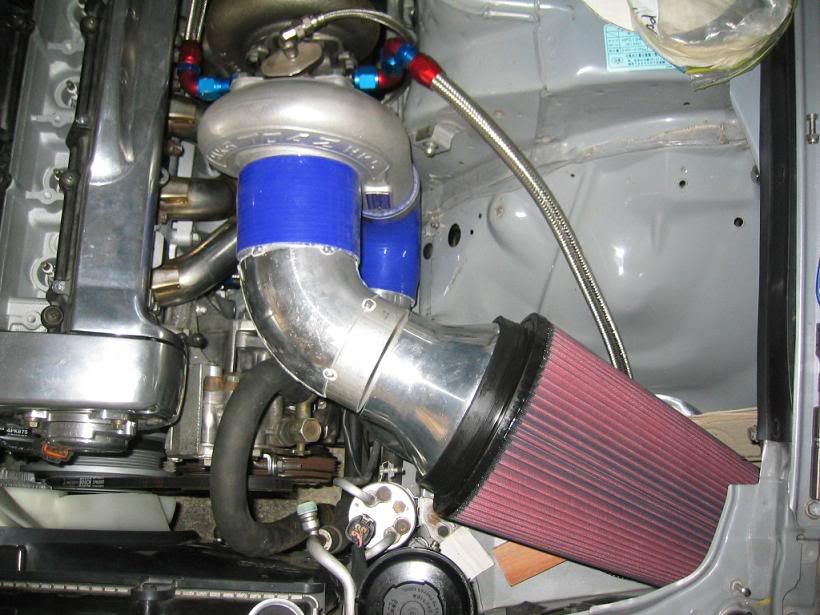

monster pod filter, biggest i can fit, its got a 6" inlet, 8" overall diameter and 30cm long.

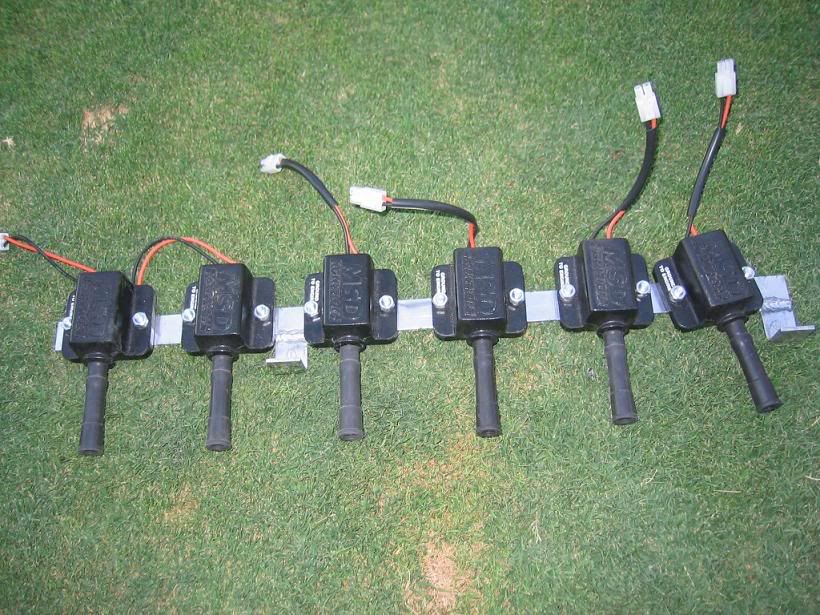

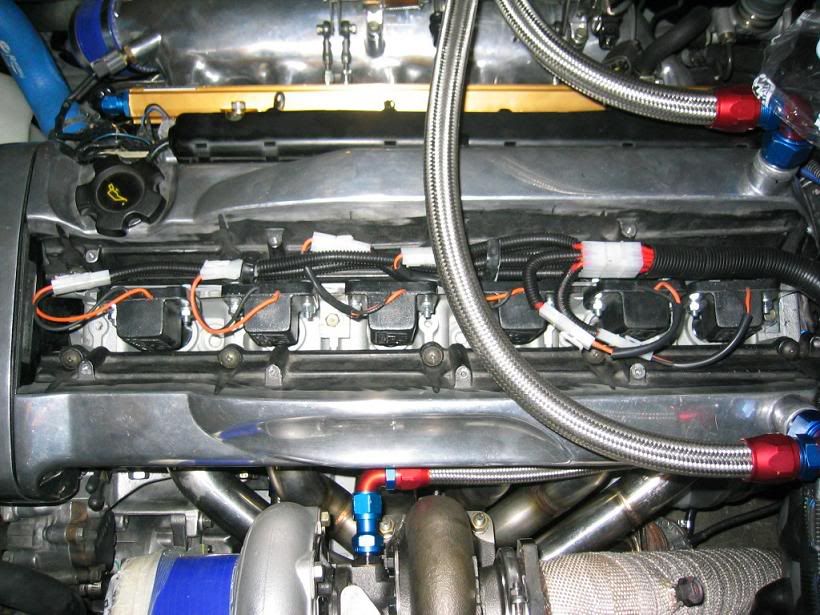

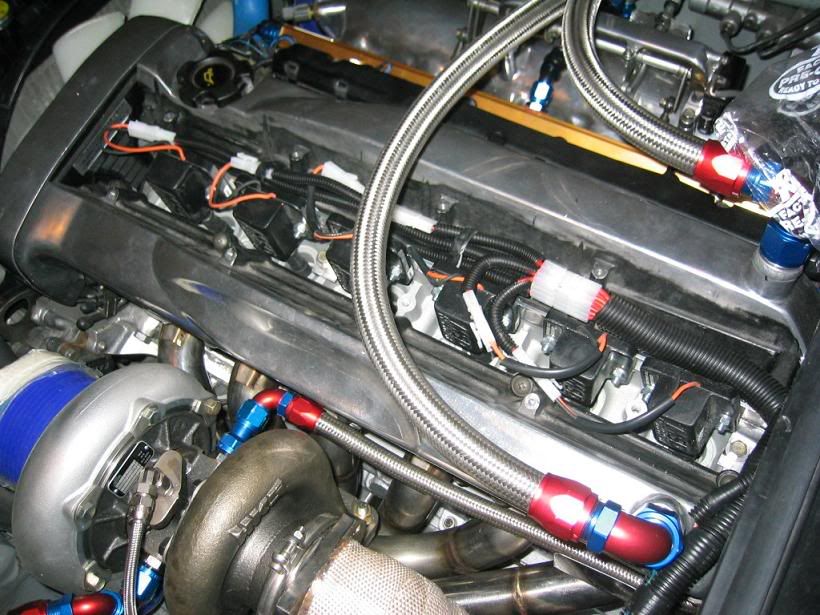

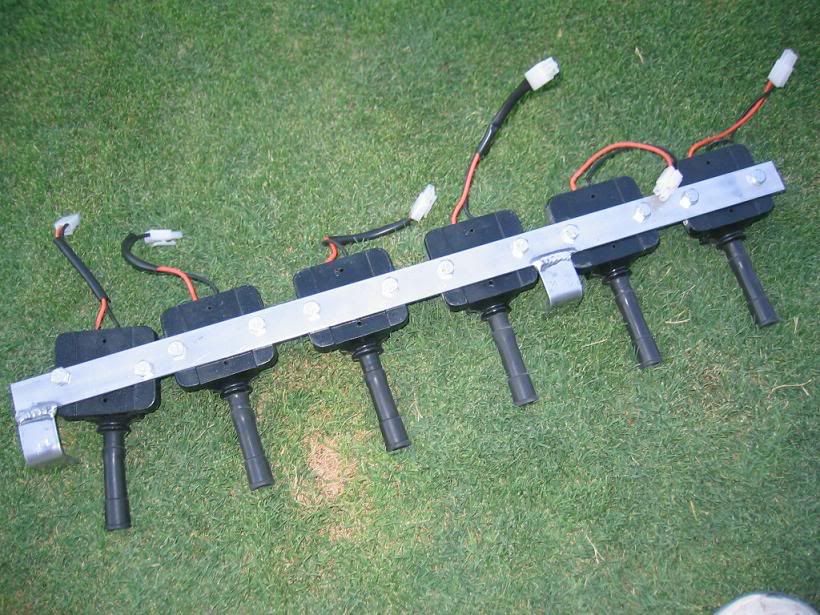

msd coilpacks mounted on custom bracket setup (sit in same position as stock coils and the top cover still fits on like standard, except last coil for cylinder 6 has gotta be on the slight angle as u can see from the pics to clear the cover, though im cutting a hole where the ignitor sits and putting mesh in it to let hot air out of the coilpack area)

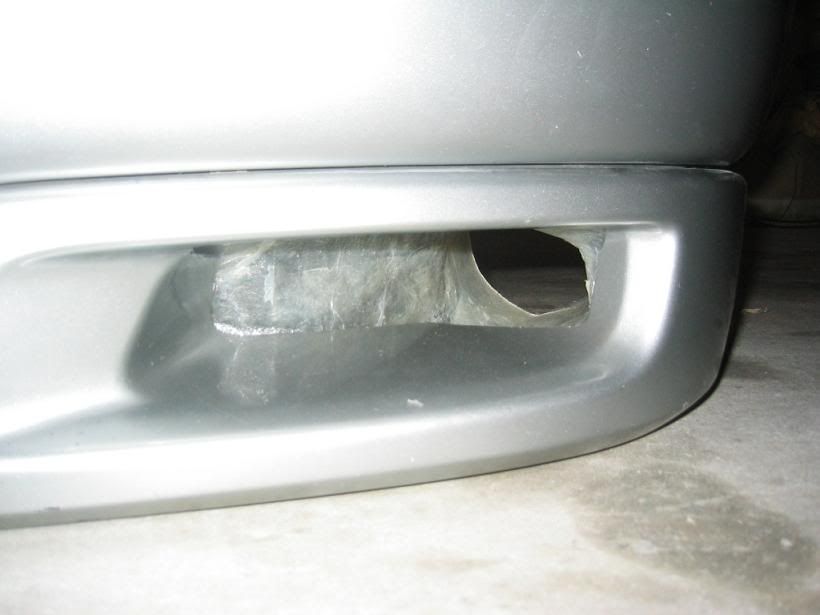

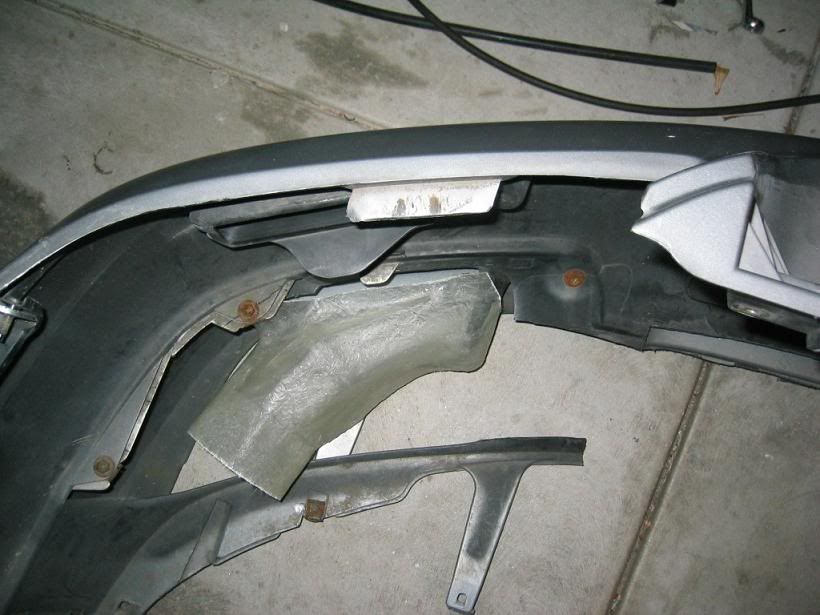

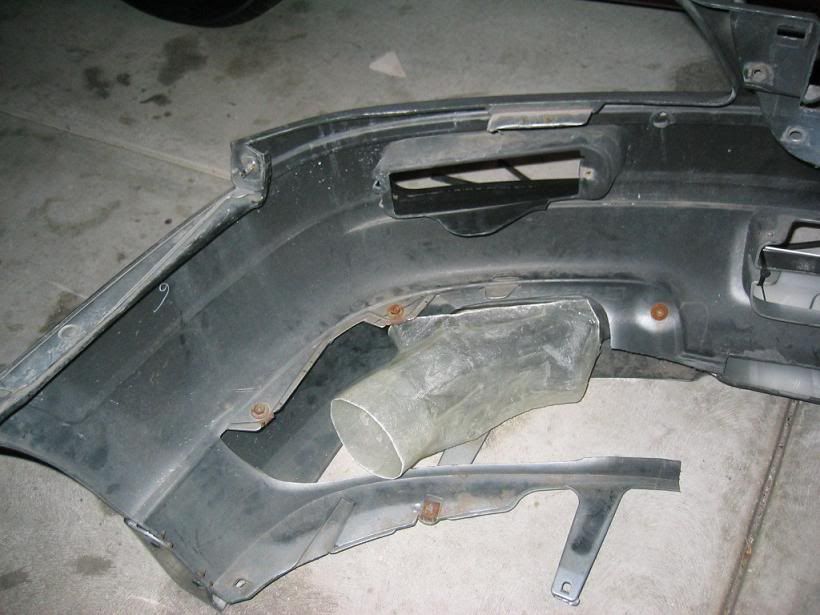

fibreglass air duct made for front bumper for cold air feed to pod filter. not bad for a home job, still needs paiting yet

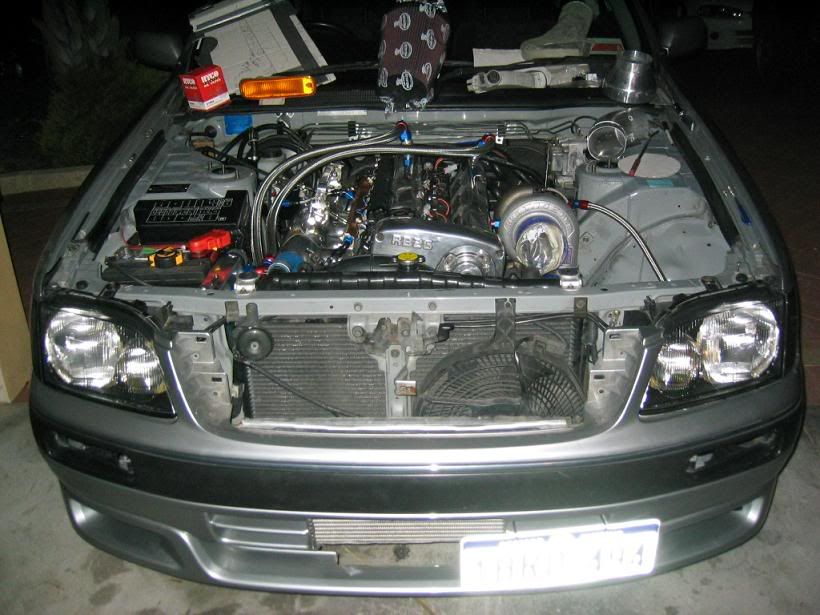

car shots without front grille etc installed...


hopefully this is the view most people see :)


cheers

Brad

Edited by CruiseLiner
WetGTR Proficient

WetGTR

Posted
Posted

Brad that coil setup is a nice piece of work. Very well done and looks neat.

I love the way you still retained the coil over plug setup, not easy to do. Alot of other setups I've seen use leads from the coils.

Chris Wilson Proficient

Chris Wilson

Posted
Posted
Brad that coil setup is a nice piece of work. Very well done and looks neat.

I love the way you still retained the coil over plug setup, not easy to do. Alot of other setups I've seen use leads from the coils.

I think i may just have to copy that coil set up, very elegant. Neatly wired, too. Lovely job all told.

Chris Wilson Proficient

Chris Wilson

Posted
Posted
About the drysump,

You ideally need a 4 stage with rear drive to run your PS pump.

Two pickups on the left front of the sump, chanelled over to the RHS to allow for crank rotation.(better in the front as braking generates more G force than acceleration)

One pickup in the back of the head to remove oil from the cam area.

you can choose to run under vacuum, or use a tank return system as shown on my other pic, but the design of the internal tank needs to include a seperator and a condensor.

The other stage of the pump is for pick up from the remote tank, which in my case is mounted inside the car.

The engine block needs to be modified as well, you need to remove the internals of the standard oil pump, block off the pump outlet in the block. We have used two inlets into the main gallery so that each pressures half the oil gallery each. You also need to modify where the factory oil filter goes on.

The pump will onl fit if you make a new custom LHS engine mount, but you would need to check this as my engine sits further back than stock.

What a superb engine. If you have any other info, maybe on a web site or whatever you can share I'd love to know all about it! You say you have moved the engine back? What happened to the front driveshafts? Do they run forward at an angle, are they custom, or have I misunderstood and this is a rear wheel drive car? Cheers. Must rate as the most sophiticated RB26 install I have yet seen. Tremendous effort, quite supeb.

BlownNBoosted Collaborator

BlownNBoosted

Posted
Posted

Nice job on the engine bay. Does anyone know if those coils can be used with a standard ignitor which will be eventually upgraded to a HKS DLI Ignition Amplifier? I am using a power FC for managment

Col-GTSX Grand Master

Col-GTSX

Posted
Posted
he is talking about Paul T's car not my stagea :blush:

LOL didnt know that...

where would i go without 4wd :D to the tyre shop alot haha

I reckon it would be sweet to arch em up with 15% throttle.... LOL

You could go for the most number of donuts world record...

Or maby the longest unassistated burnout...... Um Col scratches head....

Roy Grand Master

Roy

Posted
Posted
:D run in tune is now booked for the 16th march :D

more pics :D

check em out....

3" exhuast with heat wrap, plus the hks 50mm wastegate with 2" screamer pipe to annoy the neighbours :blush:


Looks trick, except i would suggest you either get braided lines for boost/vacuum lines, or at least put some high tempo sheating around them....holes in these lines may not result in much fun

CruiseLiner Mentor

CruiseLiner

Posted
Posted

cheers for the info roy, i didnt really think about it getting too hot down their with the heat tape on the exhuast, but its been 8 months since ive even seen a turbo run, so i may be under estimating the heat produced :(

dont want unlimited boost now do we :)

im planning on getting one of those exhuast control valves to adjust exhuast volume level from in the car, for even more of a sleeper, and especially when going through RBT's and being pulled over by cops. plus keeping my neighbourhood happy when i come home in the early hours of the morning.

also i dont think the coilpacks will work with the ignitor setup. i had stock coils up until i got the autronics CDI unit and now i can chuck the ignitor pack out and just use the msd coils :)

CruiseLiner Mentor

CruiseLiner

Posted
Posted (edited)
Looking though and old HPI mag today at work i noticed that kier wilson was only running spitfire coils with HKS twin spark :)

i have been told numerous times by people that i couldnt use stock coils/or splitfires with the autronics CDI setup, only the mercury or msd coil setups, because they fire 3 (i think) times more than stock coils or something and therfore will burn out normal coils real quick.

Edited by CruiseLiner
WetGTR Proficient

WetGTR

Posted
Posted
jsut a suggestion about the exhaust control, get one for your waste gate too :D

they still let air through, but even if the cop gets u to rev for a test.. it might just help keep it abit more hush hush :D

Wastegate wont open at idle, only when it tries to limit boost that it will open.

MADGT4 Mentor

MADGT4

Posted
Posted (edited)
and then you get a loveley sounding

Barrrrrrrpppppppppppppppppppppppppppppppppp!!

"LOVE THE GATE"

Can't wait to see a vid of this thing in action........ And hear the Gate on full song! :P

Edited by MADGT4
